Mid-Infrared Spectroscopy

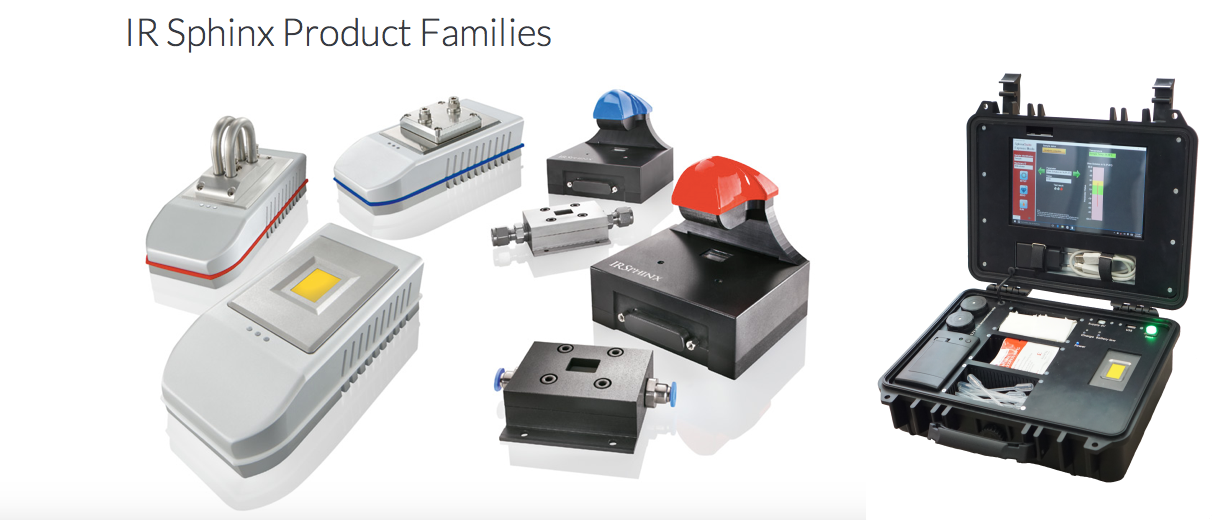

The IR Sphinx spectrometer measure the mid-infrared spectrum of a sample and ex- tract relevant parameters. The spectrometers do not contain any moving parts but use a solid state dispersion element in combination with black body infrared emitters to measure the infrared spectrum of a sample. This results in a unique product which is robust, battery operated and weighs less than 0.5 kg. The spectrometer can be configured to measure from 2.5 μm-5.0 μm or from 5.5 μm–11.0 μm. The IR Sphinx spectrometer come with a sophisticated but user friendly software called Sphinx Suite. The software is modular and the user can choose from a number of different software modules. The software is compatible with many common operating systems.The spectrometer can either be configured as an inline  analyser or a portable ATR unit.

The IR Sphinx products are developed and manufactured by Spectrolytic Ltd.



IR Sphinx ATR

IR Sphinx ATR product range uses the concept of Attenuated Total Reflection to record an infrared spectrum of a sample. The products are available in the wavelength range from 2.5–5.0 µm or of 5.5–11.0 µm. The spectral resolution varies between 18cm-1 and 36cm-1. All spectrometers include our proprietary software SphinxSuite which runs on all commonly used operating systems. The products are battery operated without having any moving parts and are designed to be truly portable. The IR Sphinx ATR spectrometer are available in three different configurations namely IR Sphinx Lab, IR Sphinx Industrial or IR Sphinx Portable.

Lab in Box

The Lab in Box includes an ATR spectrometer, a thermal printer and an integrated tablet computer with touch screen functionality. It is designed to be used in the field and in harsh environments and no specific knowledge is required to use it.
It allows the customer to carry out sample testing anywhere without the need of sending samples to a laboratory and waiting for days for the results. The Lab in Box provides accurate analysis in minutes.

IR Sphinx Transmission

IR Sphinx Transmission product range measures the infrared spectrum in transmission mode. The sample is located in a flow cell that is an integral part of the spectrometer. The transmission mode products are especially suited for inline measurements of fluid samples. The products are available in the wavelength range from 2.5–5.0 µm or of 5.5–11.0 µm. The spectral resolution varies between 18 cm-1 and 36 cm-1. All spectrometers include our proprietary software SphinxSuite which runs on all commonly used operating systems.
