LEGION ADC

256-Channel Analog-to-Digital Converter

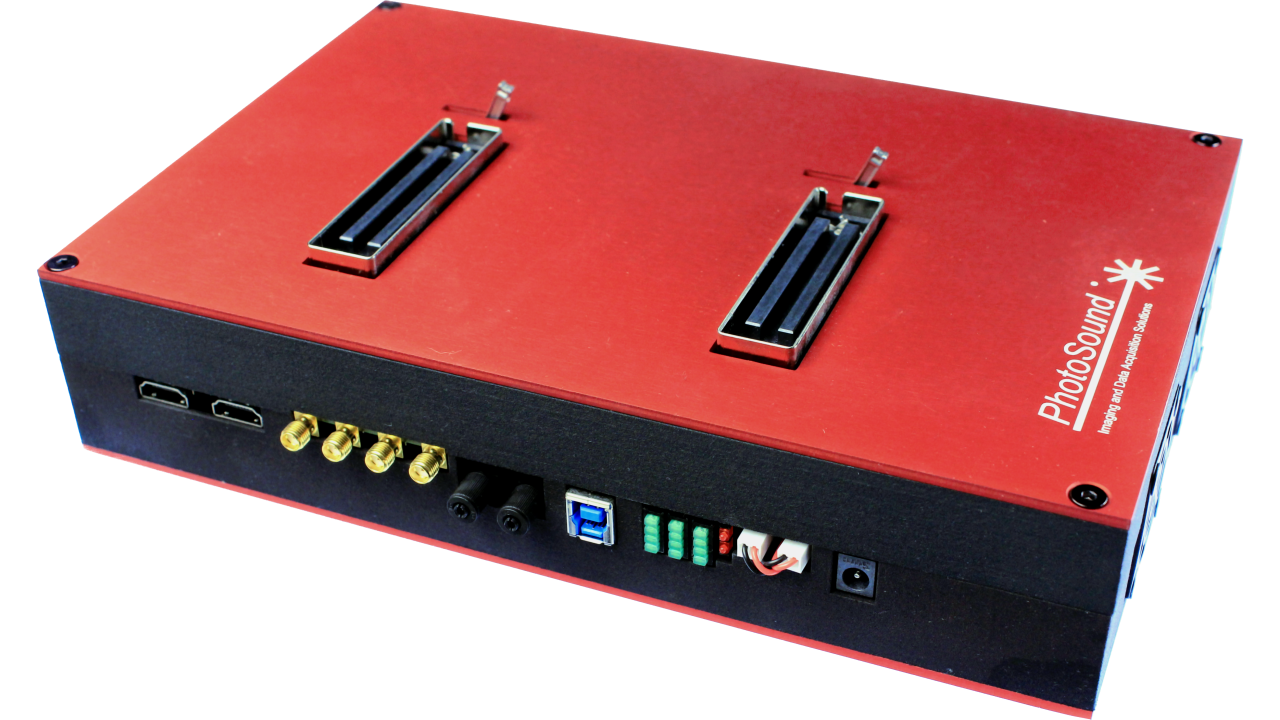

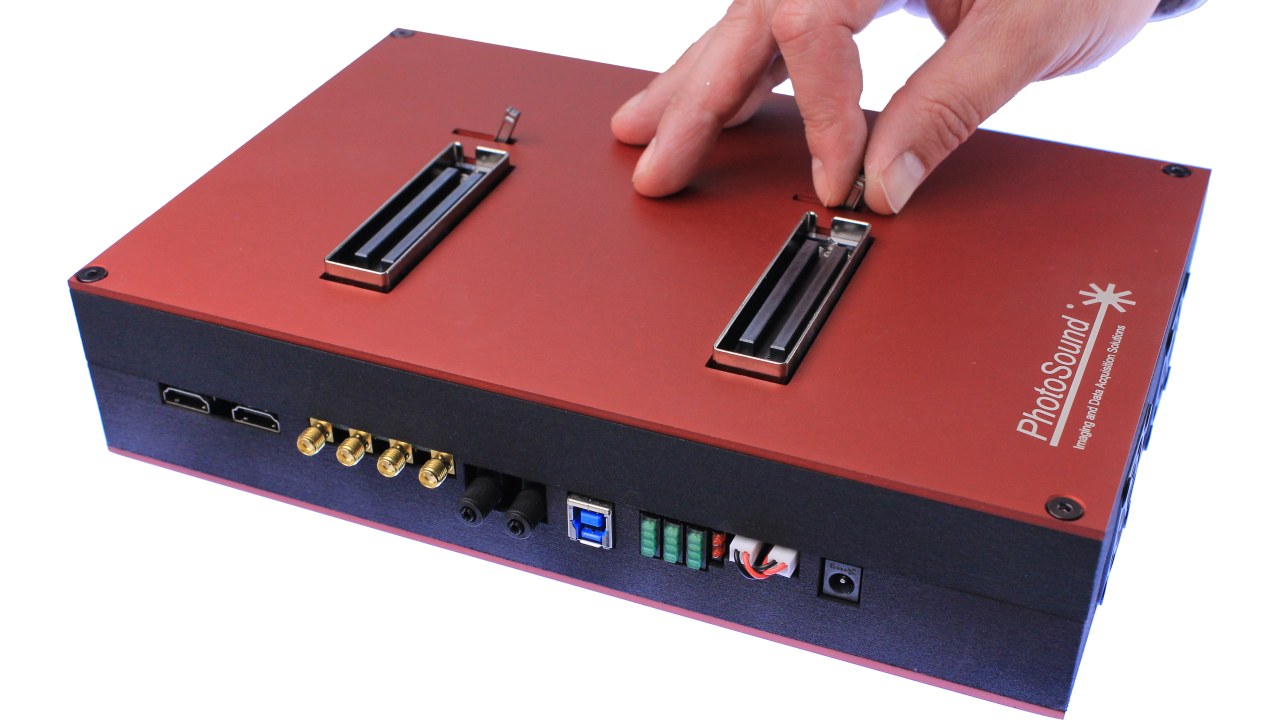

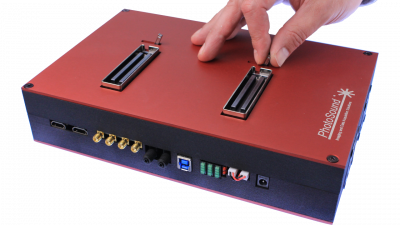

The LEGION ADC  unit offers fully parallel operation for simultaneous data acquisition from all channels without multiplexing in an ultra-compact external USB enclosure. Each unit supports 128- and 256-element detectors. Up to four ADC units can be operated in parallel to enable an unprecedented 1024 data acquisition channels. Incoming analog signals can be amplified on each channel by a fixed 40 dB using optional, integrated preamplifiers.

Features:

  • Compact, durable and light enclosures with integrated cooling fans

  • Streaming ADCs for continuous data acquisition with no buffering or multiplexing

  • Each analog channel has integrated amplifier with digitally controlled gain

  • Acoustoelectrics

  • Generate trigger output at defined rate or repetition of external trigger input with programmed delay

  • Connect up to four units in parallel and acquire more data at fast data acquisition rates

  • Sync external hardware with data acquisition using electronic or optical IN/OUT ports

  • Standalone control software based on MATLAB, open SDK written in C++ and access to raw RF data

Technical Specifications

  • 128/256-channels

  • 6 to 51 dB programmable gain (46-91 dB w/ optional preamplifiers)

  • 12.5 kHz to 25 MHz analog bandwidth (40 kHz to 25 MHz w/ optical preamplifiers)

  • 12-bit resolution

  • 40 MSPS sampling rate

  • 50 Ω input impedance (50 kΩ w/ optional preamplifiers)

  • Up to 200 Hz (256-ch) or 400 Hz (128-ch) trigger/frame rate

  • Up to 4096 points/frame/channel

  • Choice of input connectors for 128- or 256-probes or arrays

Applications:

  • Photoacoustics (Optoacoustics)

  • X-ray Induced Acoustics

  • Thermoacoustics

  • Acoustoelectrics

  • 3D Tomography

  • Photoacoustic Microscopy (PAM)

  • 2D Imaging

  • Multi-Sensor Monitoring

  • Non-Destructive Testing

  • Transducer Manufacturing

  • Low Voltage Ultrasonics
