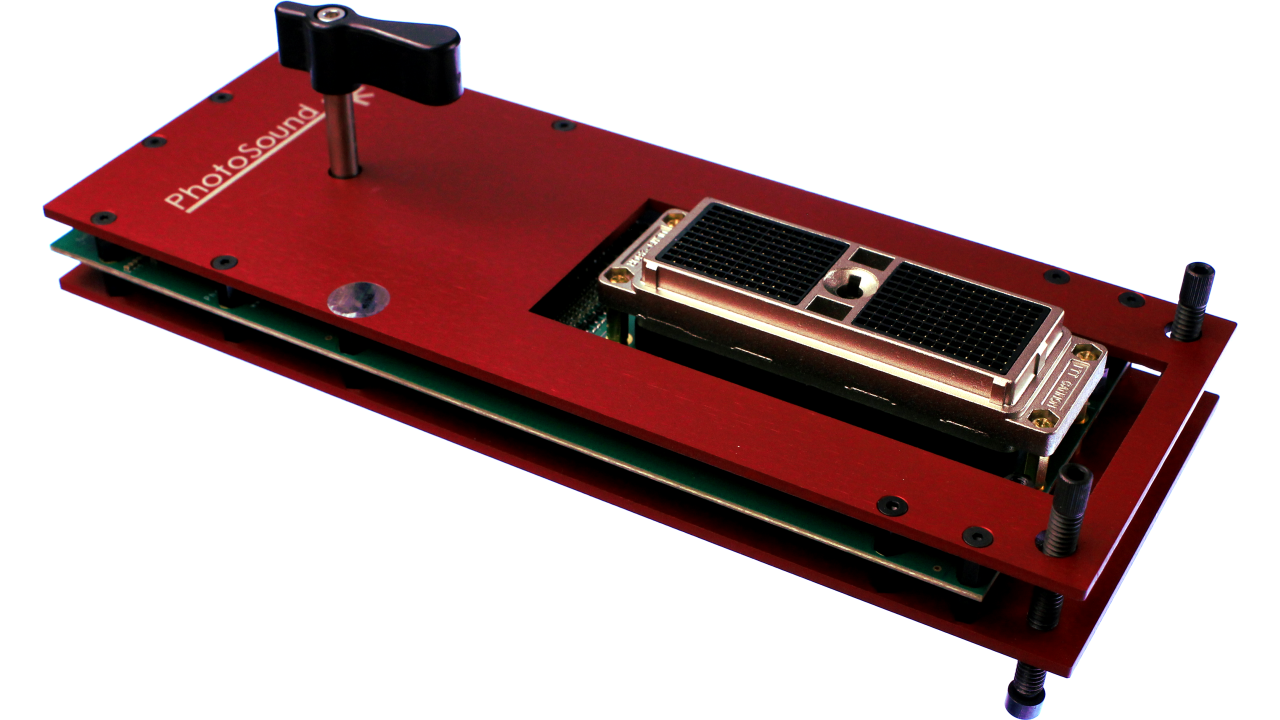

LEGION AMP

128-Channel Preamplifier

The LEGION AMP is a high channel count, compact footprint preamplifier for integration with third party analog-to-digital converters. Boost detection of small signals by +40 dB while minimizing background noise (high transmit voltages not supported).​​

Features:

  • Amplify input signals for third-party ADC units

  • Protective housing with stand-offs

  • Cannon DLM260 input/output connectors

  • Narrow housing design for fitting two side by side

  • Compact 2 x 25 mm preamps per channel

  • Heavy duty latch for locking preamp connection

Technical Specifications

  • 128-channels

  • 40 dB amplification

  • 50 kΩ input impedance

  • 50 Ω output impedance

  • 40 kHz to 35 MHz analog bandwidth

  • Cannon DLM260 input/output connectors

Applications:

  • Photoacoustics (optoacoustics)
